Description
PC3H71xNIP0F Series contains a IRED optically
coupled to a phototransistor.
It is packaged in a 4-pin mini-flat,half pitch type.
Input-output isolation voltage(rms) is 2.5kV.
Collector-emitter voltage is 80V, CTR is 100% to
700% at input current of 0.5mA and CMR is MIN.
10kV/µs.
Features
1.4-pin Mini-flat Half pitch package (Lead pitch :
1.27mm)
2.Double transfer mold package (Ideal for Flow
Soldering)
3.Low input current type (I F=0.5mA)
4.High collector-emitter voltage (V CEO: 80V)
5.High noise immunity due to high common mode
rejection voltage (CMR : MIN. 10kV/µs)
6.Isolation voltage between input and output (V iso(rms):
2.5kV)
7.Lead-free and RoHS directive compliant
Applications
1.Programmable controllers
2.Facsimiles
3.Telephones
Pinout

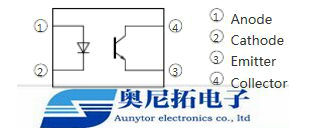

Internal Connection Diagram
P/N Package
PC3H710NIP0F SOP4
PC3H711NIP0F SOP4
PC3H712NIP0F SOP4
PC3H715NIP0F SOP4
PC3H710NIP0F SOP4
