相關型號
| PART | PIN-PACKAGE |
| MAX517ACPA | 8 Plastic DIP |
| MAX517BCPA | 8 Plastic DIP |
| MAX517ACSA | 8 SO |
| MAX517BCSA | 8 SO |
| MAX517BC/D | Dice* |
| MAX517BMJA | 8 CERDIP** |
| MAX517BEPA | 8 Plastic DIP |
| MAX517AEPA | 8 Plastic DIP |
| MAX518ACPA | 8 Plastic DIP |
| MAX519BESE | 16 CERDIP** |
| MAX519AESE | 16 Narrow SO |
| MAX519BEPE | 16 Narrow SO |
| MAX519AEPE | 16 Plastic DIP |
| MAX519BC/D | 16 Plastic DIP |
| MAX519BCSE | Dice* |
| MAX519ACSE | 16 Narrow SO |
| MAX519BCPE | 16 Narrow SO |
| MAX519ACPE | 16 Plastic DIP |
| MAX518BMJA | 16 Plastic DIP |
| MAX518BESA | 8 CERDIP** |
| MAX518AESA | 8 SO |
| MAX518BCPA | 8 SO |
| MAX518ACSA | 8 Plastic DIP |
| MAX518BCSA | 8 SO |
| MAX518BC/D | 8 SO |
| MAX518AEPA | Dice* |
| MAX518BEPA | 8 Plastic DIP |
| MAX519BMJE | 8 Plastic DIP |
| MAX517BESA | 8 SO |
| MAX517AESA | 8 SO |
| 概述 | ||||||
MAX517是一個單一的DAC和MAX518/MAX519是雙數模轉換器。使用的MAX518作為這兩個DAC的參考電壓。在MAX517有其單DAC參考輸入和MAX519的兩個DAC都有自己的參考輸入。 MAX517/MAX518/MAX519功能的串行接口和內部軟件協議，允許數據速率高達400kbps的通信。該接口與雙緩沖輸入配置相結合，使雙重設備的DAC寄存器進行更新單獨或同時進行。此外，該設備可放入一個低功耗關斷模式，將電源電流降至4μA。上電復位保證DAC輸出為0V是當電源最初應用。 MAX517/MAX518可節省空間的8引腳DIP和SO封裝。 MAX519來的16引腳DIP和SO封裝。 |
||||||
下載
| 關鍵特性 | 應用/使用 | |||||||||||||
|
|
| Key Specifications: Precision DACs (4-12 Bits) | |||||||||||||||||||||||
| Part Number | Resolution Bits | Channels | Output Type | Reference | INL (±LSB) |
Interface | Supply Range (V) |
Supply Range (V) |
Voltage Supplies | ICC (mA) |
Full-Scale Error | Settling Time (µs) |
Glitch Energy (nVs) |
Package/Pins | Smallest Available Pckg. (mm2) |
Oper. Temp. (°C) |
Price | ||||||
| max | min | max | max | max | typ | typ | max w/pins | See Notes | |||||||||||||||
| MAX517A | 8 | 1 | Voltage- Buffered | Ext. | 1 | Serial - I2C | 4.5 | 5.5 | 1 | 3.5 | ±20 mV | 6 | 12 |
|
31 |
|
$2.73 @1k | ||||||
| MAX517B | 1 | 1.5 | 3.5 | 12 |
|
31 | $2.10 @1k | ||||||||||||||||
| MAX518A | 2 | 1 | 6 | 13 |
|
31 | $2.93 @1k | ||||||||||||||||
| MAX518B | 2 | 1.5 | 6 | 14 |
|
31 | $2.25 @1k | ||||||||||||||||
| MAX519A | 2 | 1 | 6 | 15 |
|
62 | $3.06 @1k | ||||||||||||||||
| MAX519B | 2 | 1.5 | 6 | 16 |
|
62 | $2.35 @1k | ||||||||||||||||
| See All Precision DACs (4-12 Bits) (261) | |||||||||||||||||||||||

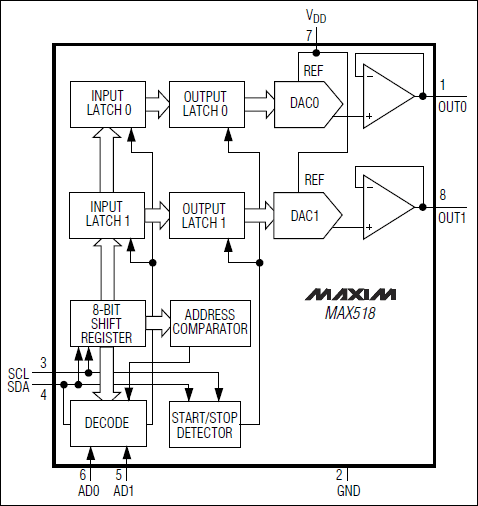

| 圖表 |
|
