Product Description:
This single-positive and two input NAND gate is designed for 1.65 - V to 5.5 V to VCC operation.
The SN74LVC1G00 implementation of the Boolean function Y = A • B or Y = A in positive logic B +.
NanoFree ™ package technology is a major breakthrough in IC packaging concepts, using death as a package.
This device is fully specified part of the power close the application using Ioff. The Ioff circuitry disables the output, to prevent the adoption, the power plant to destroy the current return.
Features:
Texas Instruments NanoFree ™ package can be
Support 5 Vcc operation
Accept the input voltage V 5.5
Maximum desorption at 3.3 3.8 ns V
Low power, 10μA maximum of the International Criminal Court
± 24 - 3.3 mA Output Driver V
Ioff supports partial power-down mode operation
Latch-up performance is better than 100 milliamperes per JESD 78, section II Class
ESD protection exceeds JESD 22
2000 - V Human Body Model (A114's - A)
200 - V Machine Model (Highway A115 - A)
1000 - V Charged Device Model (C101)
Specifications:
Status of the devices temperature (oC) Price (USD) | Quantity Package | pin to the top mark Package QTY | Package Carrier Size
SN74LVC1G00DBVR ACTIVE -40 to 85 0.11 | 1ku SOT-23 (DBV) | 5 View 3000 | LARGE T & R Show
SN74LVC1G00DBVRE4 ACTIVE -40 to 85 0.11 | 1ku SOT-23 (DBV) | 5 View 3000 | LARGE T & R Show
SN74LVC1G00DBVRG4 ACTIVE -40 to 85 0.11 | 1ku SOT-23 (DBV) | 5 View 3000 | LARGE T & R Show
SN74LVC1G00DBVT ACTIVE -40 to 85 0.44 | 1ku SOT-23 (DBV) | 5 View 250 | SMALL T & R Show
SN74LVC1G00DBVTE4 ACTIVE -40 to 85 0.44 | 1ku SOT-23 (DBV) | 5 View 250 | SMALL T & R Show
SN74LVC1G00DBVTG4 ACTIVE -40 to 85 0.44 | 1ku SOT-23 (DBV) | 5 View 250 | SMALL T & R Show
SN74LVC1G00DCKR ACTIVE -40 to 85 0.11 | 1ku SC70 (DCK) | 5 View 3000 | LARGE T & R Show
SN74LVC1G00DCKRE4 ACTIVE -40 to 85 0.11 | 1ku SC70 (DCK) | 5 View 3000 | LARGE T & R Show
SN74LVC1G00DCKRG4 ACTIVE -40 to 85 0.11 | 1ku SC70 (DCK) | 5 View 3000 | LARGE T & R Show
SN74LVC1G00DCKT ACTIVE -40 to 85 0.44 | 1ku SC70 (DCK) | 5 View 250 | SMALL T & R Show
SN74LVC1G00DCKTE4 ACTIVE -40 to 85 0.44 | 1ku SC70 (DCK) | 5 View 250 | SMALL T & R Show
SN74LVC1G00DCKTG4 ACTIVE -40 to 85 0.44 | 1ku SC70 (DCK) | 5 View 250 | SMALL T & R Show
SN74LVC1G00DRLR ACTIVE -40 to 85 0.14 | 1ku SOT (DRL) | 5 4000 | LARGE T & R Show
SN74LVC1G00DRLRG4 ACTIVE -40 to 85 0.14 | 1ku SOT (DRL) | 5 4000 | LARGE T & R Show
SN74LVC1G00YZPR ACTIVE -40 to 85 0.23 | 1ku DSBGA (YZP) | 5 3000 | LARGE T & R Show

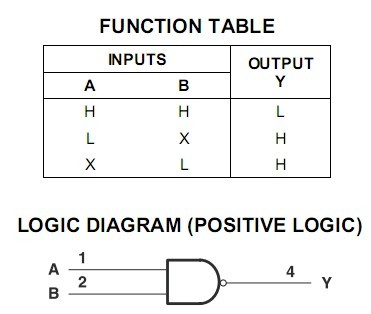

Product Diagram:
